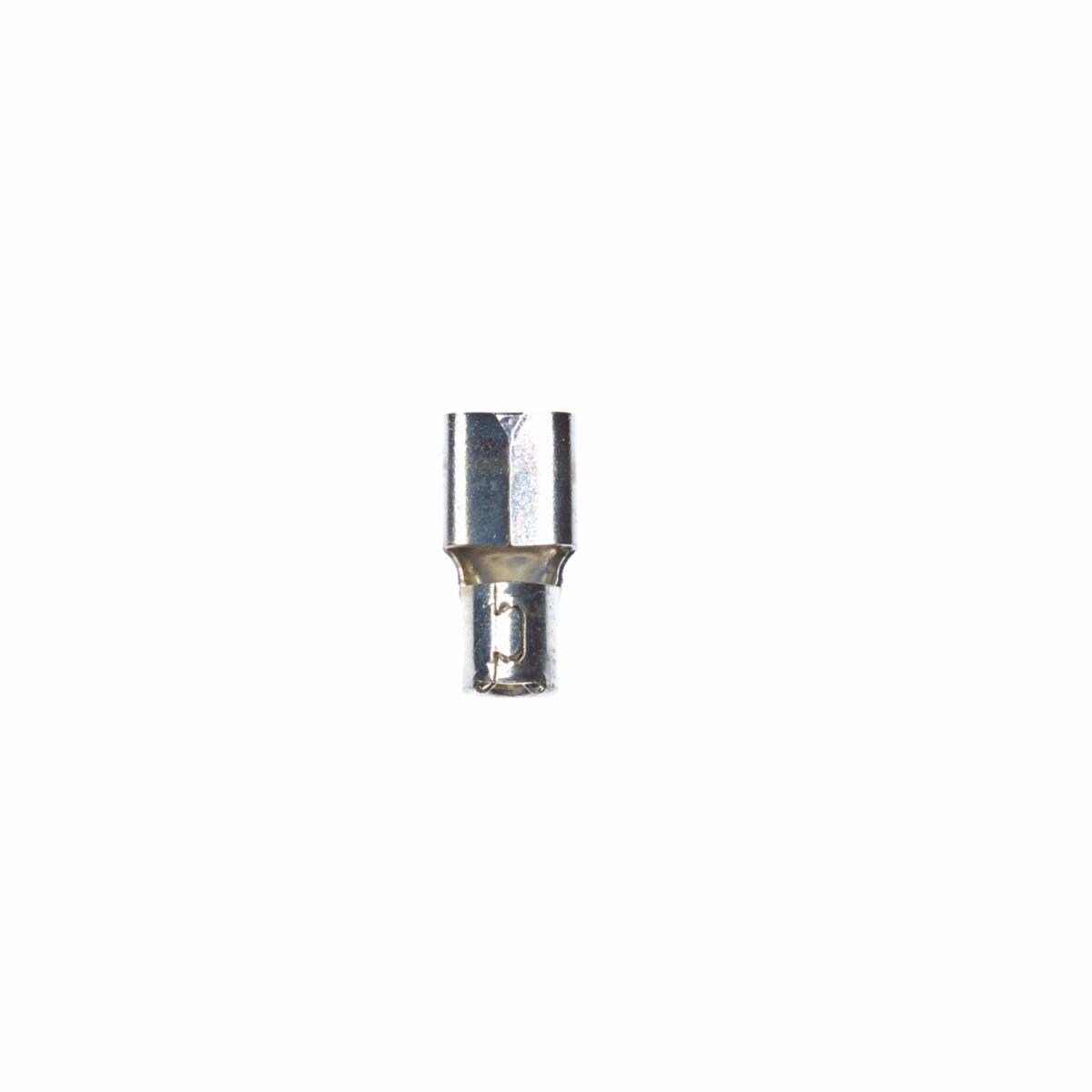

3M™ Scotchlok™ Female Disconnect, Non-Insulated Butted Seam w/Interlocking Barrel MI18-250DFK, 22-18 AWG
- 3M ID 80610531198
Specifications
Details
Highlights
- Non-insulated, butted seam with an interlocking barrel and a beveled mouth offers easy insertion of wires
- 1000/case
- Dents and rolled edges of this female disconnect terminal offer excellent holding force
- Allows for quick and easy disconnect of wires
- Mates with 0.25-in wide male tab
- Accommodates wire sizes 22 to 18 AWG
- Made of durable brass for good conductivity and has corrosion-resistant tin plating
- Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
- Rated 600V for building wire and 1000V for signs, fixtures or luminaires
- UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
3M™ Scotchlok™ Standard Female Disconnect Terminal has dents and rolled edges to offer superior holding force while allowing for easy disconnect. The terminal has a non-insulated, butted seam with an interlocking barrel and withstands a maximum temperature of 347 degrees F (175 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.
3M™ Scotchlok™ Standard Female Disconnect Terminal attaches to the mating part with a tongue that slips over the male tab. This terminal has a non-insulated, butted seam with an interlocking barrel and a beveled mouth to easily guide the wire into position. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
