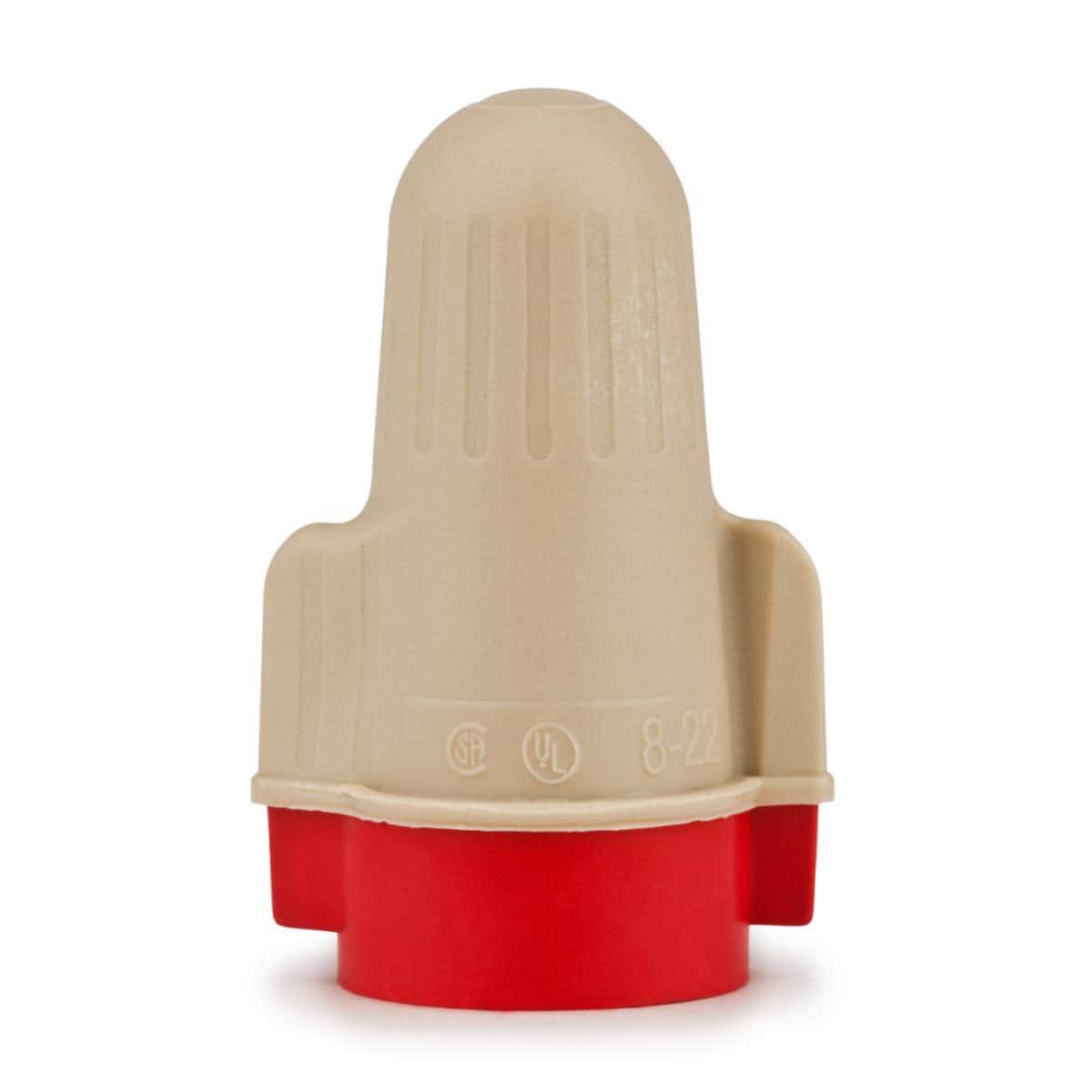

3M™ Performance Plus Wire Connector T/R+BOX, Super Tan, 100 per Box

3M ID 80000209744
  • Offers a strong bite in a pigtail application so you get a long-lasting connection
  • One connector replaces 3 (yellow, red & tan) in the majority of all field applications
  • The T/R+ is dual color-coded so this 1 connector replaces your traditional tan and red
  • Ideal for many applications including industrial and residential construction, automotive and appliance applications
 More
View all details
Details
  • Offers a strong bite in a pigtail application so you get a long-lasting connection
  • One connector replaces 3 (yellow, red & tan) in the majority of all field applications
  • The T/R+ is dual color-coded so this 1 connector replaces your traditional tan and red
  • Ideal for many applications including industrial and residential construction, automotive and appliance applications
  • Use with copper conductors ranging from 22 to 8 AWG
  • Made of polypropylene and thermoplastic elastomer material
  • Tan/red connector is flame-retardant and handles well in temperatures up to 221 degrees F (105 degrees C)
  • Use on building wire rated 600V and on signs, fixtures or luminaires rated 1000V
  • UL Listed and CSA Certified
  • 100 connectors/pouch or 1000/case

Use a 3M™ Wire Connector T/R+ to electrically connect two or more conductor ends in a pigtail application and insulate the connection.

Use a 3M™ Wire Connector T/R+ to electrically connect two or more conductor ends in a pigtail application and insulate the connection.

Specifications
Brand
Performance Plus™
Conductor Sizes
22 - 8 AWG
Connection Type
Wire
Connector Style
Twist On
Flame Retardant
Yes
Maximum Operating Temperature (Celsius)
105 Degree Celsius
Maximum Recommended Voltage Rating
600 V
Maximum Wire Gauge
8 AWG
Minimum Wire Gauge
22 AWG
Packaging
Pouch
Product Type
Connector
RoHS 2011/65/EU Compliant
Yes
RoHS EU Comments
RoHS 2011/65/EU compliant without exemption
Voltage Rating
600 Volt
